OA-600 bare finish steel net work raised access floor

Short Description:

This raised floor is specially designed for easy cable layout in intelligent buildings. The outside of the raised floor is made of high-quality zinc cold steel sheet, the top and the bottom are both superiorly deep-stretching zinc cold steel sheet. Advanced spot welding technical structure is applied to the top and bottom of the raised floor, and in the middle is filled with lightweight cement of special ingredients developed by KEHUA. In this way, the finished products feature high loading capacity and durability. The surface of raised floor can be covered with various PVC or fabric carpets.


Product Detail

Product Tags

Product description

OA600 High quality net work raised access floor

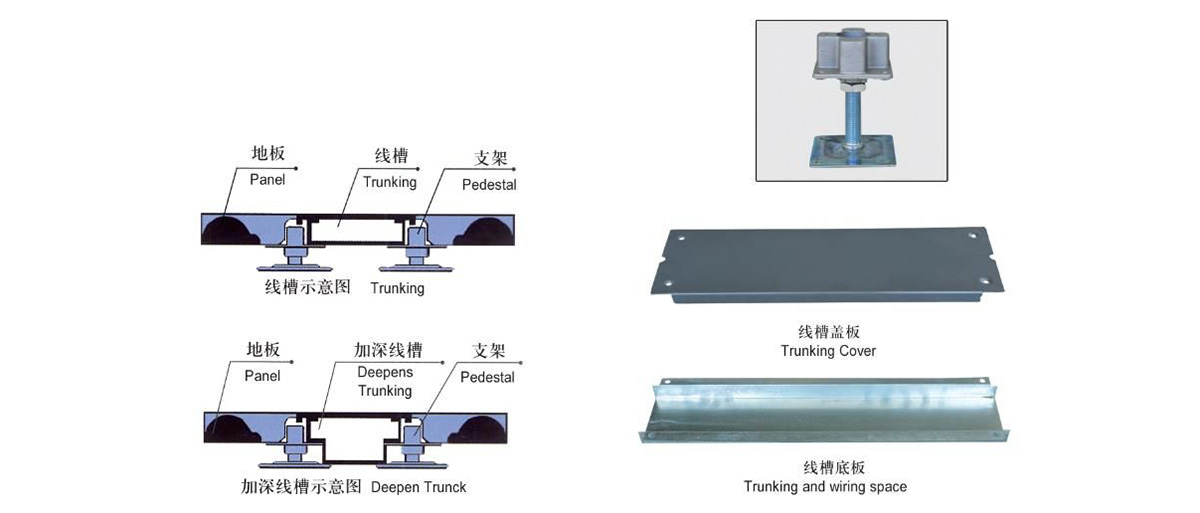

This raised floor is specially designed for easy cable layout in intelligent buildings. The outside of the raised floor is made of high-quality zinc cold steel sheet, the top and the bottom are both superiorly deep-stretching zinc cold steel sheet. Advanced spot welding technical structure is applied to the top and bottom of the raised floor, and in the middle is filled with lightweight cement of special ingredients developed by KEHUA. In this way, the finished products feature high loading capacity and durability. The surface of raised floor can be covered with various PVC or fabric carpets. To deal with the wiring problems caused by the growing pipelines in modern interlligent building, this panel can match with movable trunking to lay various types of pipelines so that the strong and weak current can be segregated. After laying on the floor, the trunking cover can be lifted off so that you can lay and maintain various types of pipelines and cables. Easy installation and maintaince.

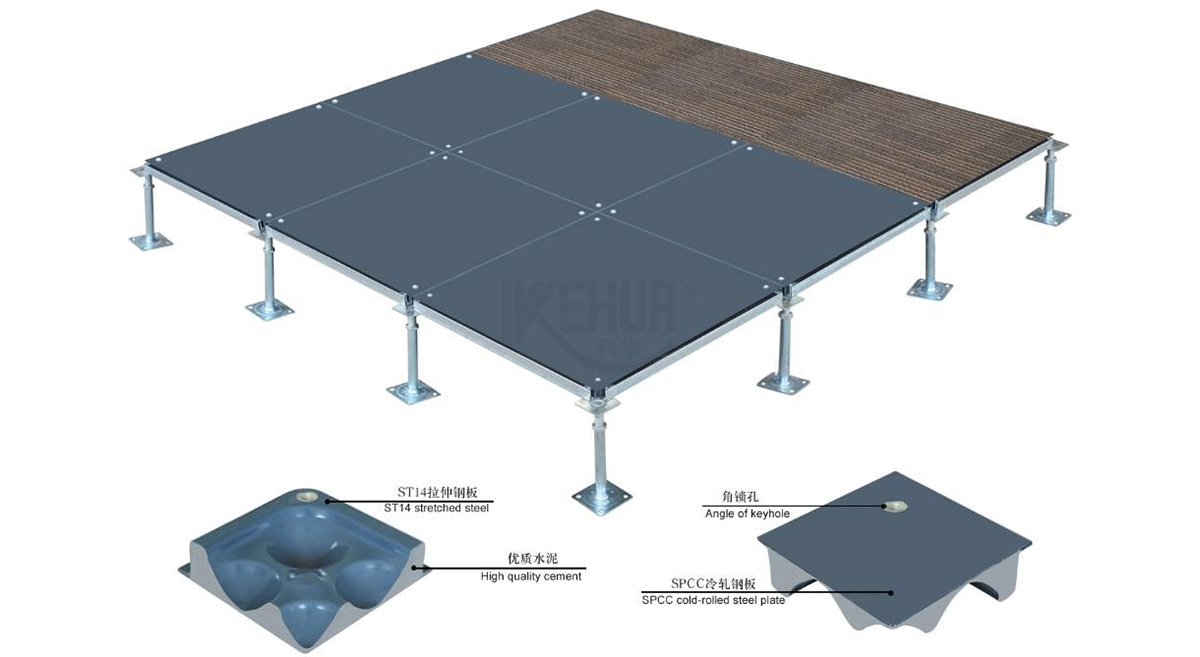

OA600 network raised floor is made of high quality steel plate after tensile forming, welding and spraying. The back is made of 64 honeycomb spherical welding process. The inner cavity is filled with high strength foamed cement, with strong bearing capacity and high flatness.

Bracket is zinc plated and cast aluminum alloy structure, which height is adjustable and can be self-locked, floor surrounded by forming a trimming and riveting two, due to the complexity of intelligent building wiring, the function is all ready, so the qualification excuse is various, OA600 network floor open groove is equipped with moulding, fixed installation Angle lock connection, is simple and easy of reliable, stable and leveling.

Features

1. He can fire prevention, moisture-proof, dustproof, corrosion resistant.
2. Four corners to support a more stable, the bearing height adjustable, flexible assembly, wiring quantity is big, good compatibility, easy maintenance.
3. Low installation height, matching trough, trough plate can be installed between the outlet, casual, lower part space can be used for air conditioning and ventilation.
4. Can be combined with the surface laid carpet goods PVC magnetic floor mat, beautiful and elegant, decorative, comfortable feet.
5. To solve the original traditional process cement, floor tile, wood floor and other wires embedded, the long-term use of the line aging, short circuit accidents and other troubles.

Application

Due to the characteristics of the network floor, it has overcome the defects of the existing floor cable solutions, and it is well adapted to the requirements of fast network change, access port, writing floor height, anti-static, flame retardant. Therefore, it is very suitable for large office buildings, computer rooms, intelligent buildings, securities hall, government agencies, financial institutions, scientific research institutions, broadcasting centers, posts and telecommunications communications, communication sites, telecommunications teaching, advertising printing, conference centers, media production, commercial websites, electric transportation, etc. His application will certainly contribute to the further development of utuidong high-tech technology.

This is 600 OA bare finish panel project in Malaysia. Total need 50000sqm.

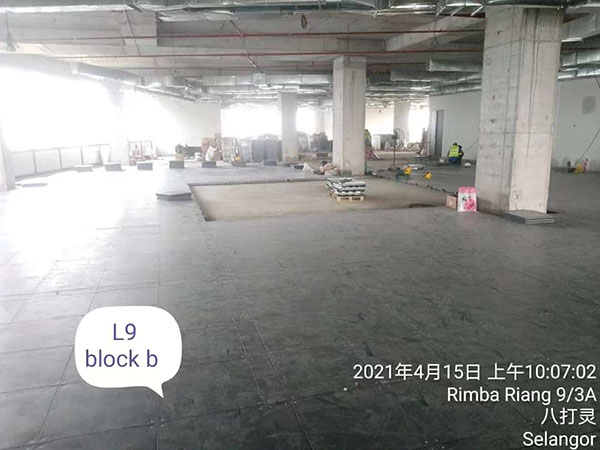

OA-600 application

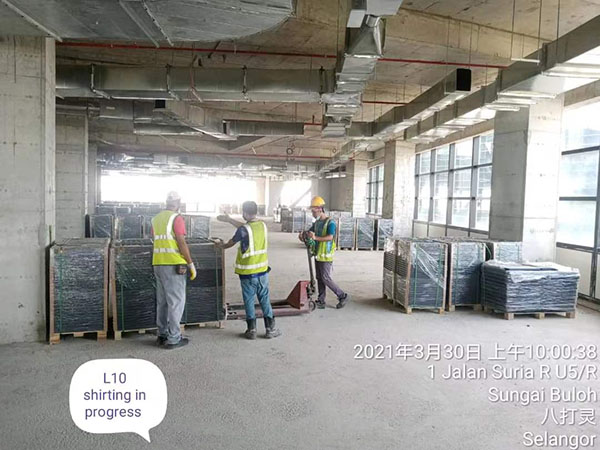

OA-600 application2

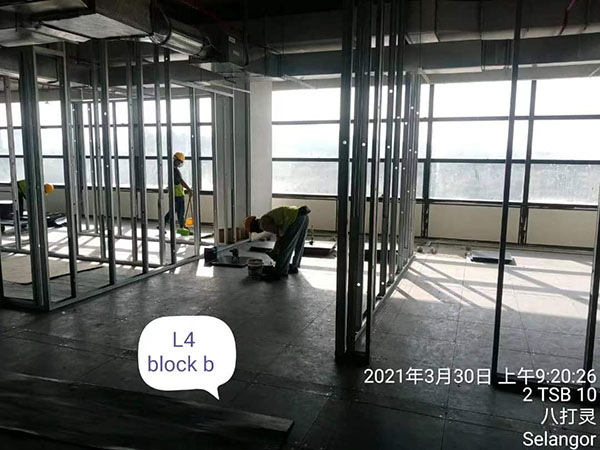

OA-600 application3

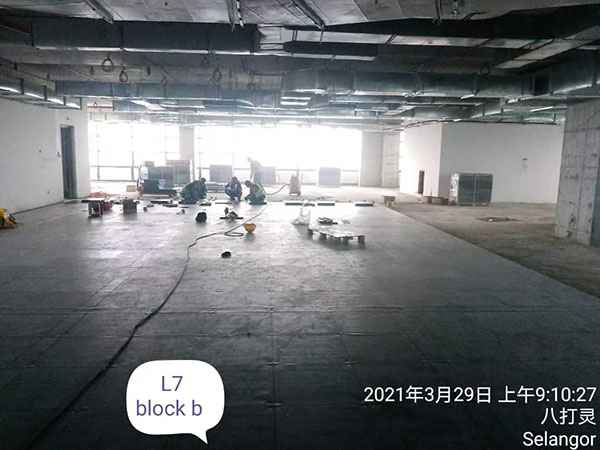

OA-600 application4

Performance select chart

Type Specification
Concentrated Load(N) Impact Load(N) Ultimate Load(N) Untimate Load(N/m2) Dynamic Load(N) Fire Protection System resistance
International National LB N KG 10 10000
FS700 HDG(Q) 600x600x33 700 2950 318 550 8850 12500 2950 2255 A
FS800 HDG(P) 600x600x33 800 3560 363 670 10680 16000 3560 2950 A
FS1000 HDG(B) 600x600x33 1000 4450 453 670 13350  23000 4450 3560 A
FS1250 HDG(Z) 600x600x33 1250 5560 567 670 16680 33000 5560 4450 A
