Permanent anti-static PVC flooring

Short Description:

Product name: Straight paving PVC anti-static floor
Product specification: 600*600*(2.0/2.5/3.0)mm
Product introduction: Straight paving PVC anti-static floor is based on POLYvinyl chloride resin, adding injection agent, stabilizer, filler, conductive electrostatic materials and mixed color materials by scientific ratio, polymerization thermoplastic molding.


Product Detail

Product Tags

Product description

Straight paving PVC anti-static floor is based on POLYvinyl chloride resin, adding injection agent, stabilizer, filler, conductive electrostatic materials and mixed color materials by scientific ratio, polymerization thermoplastic molding.  Is a permanent electrostatic guide body, is also homogeneous through the heart, from the bottom to the surface of the pattern material is the same, the appearance of the terrazzo shaped semi-hard ground decoration material, has a good decorative effect, with high wear resistance, anti-static lasting, aging resistance, low dust volume characteristics.

Construction procedures: 1. Clean up the ground and find the center line;  First clean up the ground dust, and then use two sentences to find the center of the room, draw a central cross line, cross line vertical equal division. 2. Laying copper foil (or aluminum foil) network; A. Paste copper foil strips on the ground according to the specified size to form a network. At the intersection of copper foil, conductive adhesive shall be used to ensure the conduction between copper foil;  B.Use megohmmeter to measure the resistance between adjacent copper foil, and its resistance value needs small fish 105 ω. If there is no connection, it is necessary to find out the reason and paste it again to ensure the conduction between copper foil;  C. Every 100 square meters of the pasted copper foil network, at least four points are connected with the ground wire. 3. laying the floor: a, with the scraper daub part of the ground conductive adhesive;  B.When the conductive adhesive feels sticky and non-sticky, the floor shall be laid. When laying, the floor shall be spread out one by one from the center and beaten with rubber hammer head.  Keep 1.5-2.0mm spacing between floors; C. Continue trowel coating conductive adhesive, coated with the floor, until the whole construction ground should be paved; D. During floor laying, copper foil must be passed under the floor; E. Soften the welding rod with a torch at high temperature and fill the space between the floor and the floor.  F. Cut off the protruding part of the electrode with a fine art knife to complete the construction surface. G. The surface of the floor after laying must be cleaned.

Finish cover series
Perment conductive PVC finish cover color card

HPL finish cover color card

Features

The conductive electrostatic network formed by the interface of plastic particles has permanent antistatic property. Appearance resembles marbling pattern, has better decorative effect. It has the characteristics of wear-resisting, anti-static, aging resistance and low dust content. All the performance indexes have reached or exceeded the level of similar products at home and abroad by the anti-static supervision and inspection center of the Ministry of Information Industry.

Application

Clean room PVC anti-static floor, can strictly meet the requirements of class 10 clean room. It has low carbon pollution, low radiation, is not affected by temperature and humidity, and is highly suitable for clean rooms with special maintenance requirements or technical requirements, such as semiconductor, microelectronics, optics, aerospace, medical medicine, biotechnology and other industries. PVC anti-static floor is a conductive electrostatic network formed by particle interface network, which can help protect sensitive electronic equipment, equipment line, and protect products from electrostatic interference that is thought to be manufactured. Computer room goods electronic equipment and telecommunication environment PVC anti-static floor, can enter into the computer terminal or other sensitive electronic equipment static radiation problem for good control, to prevent the damage to the internal circuit, abnormal entry goods reply, computer memory loss or other misaction.

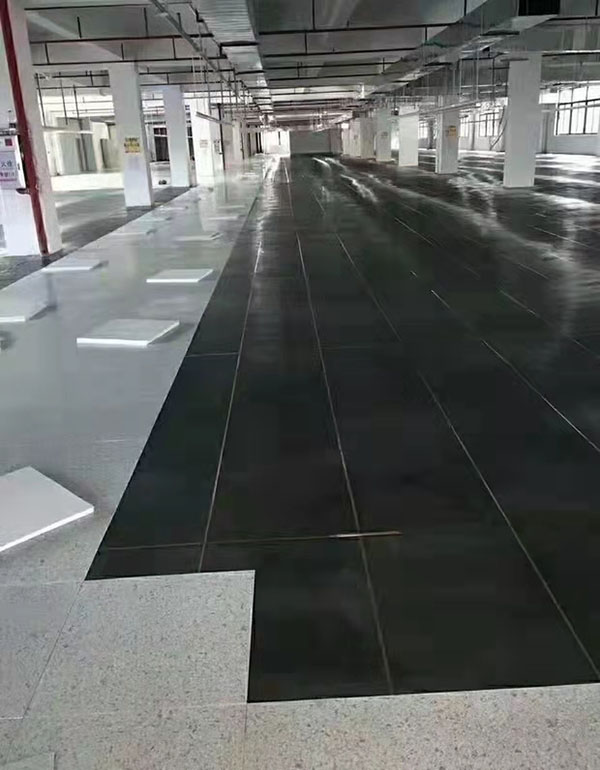

Permanent anti-static PVC flooring001

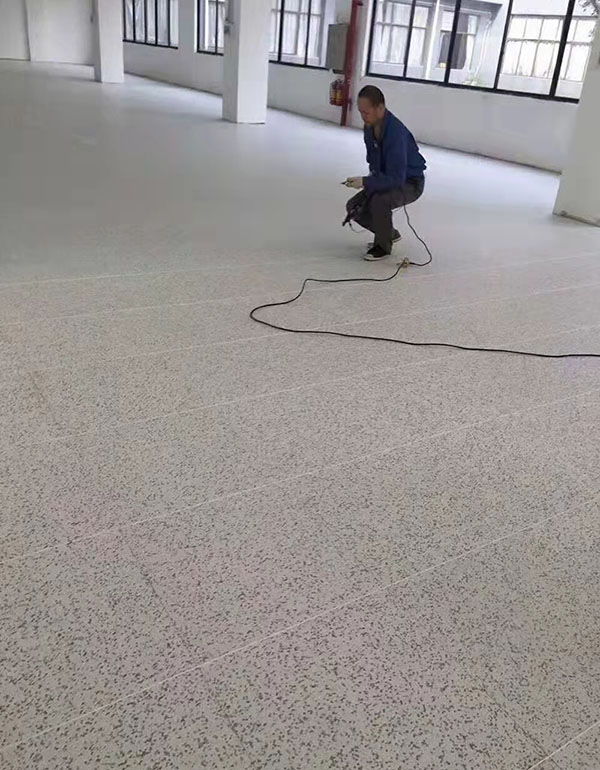

Permanent anti-static PVC flooring002

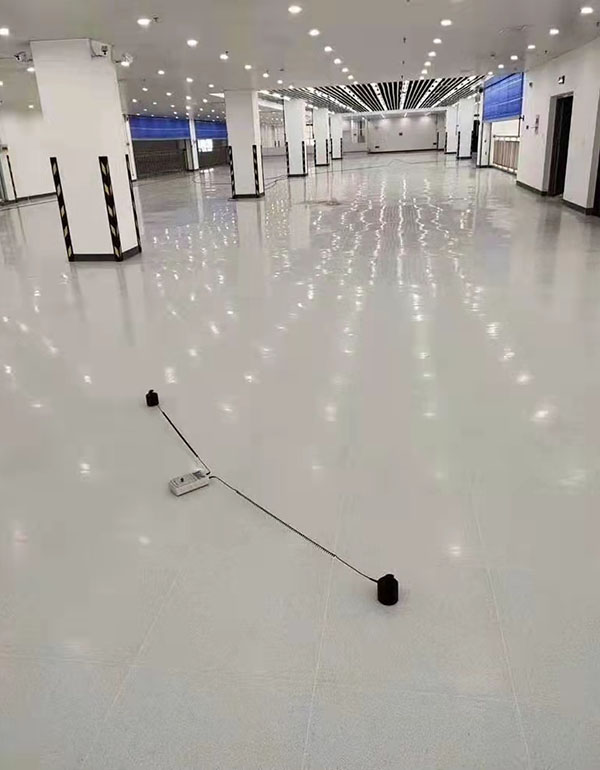

Permanent anti-static PVC flooring003

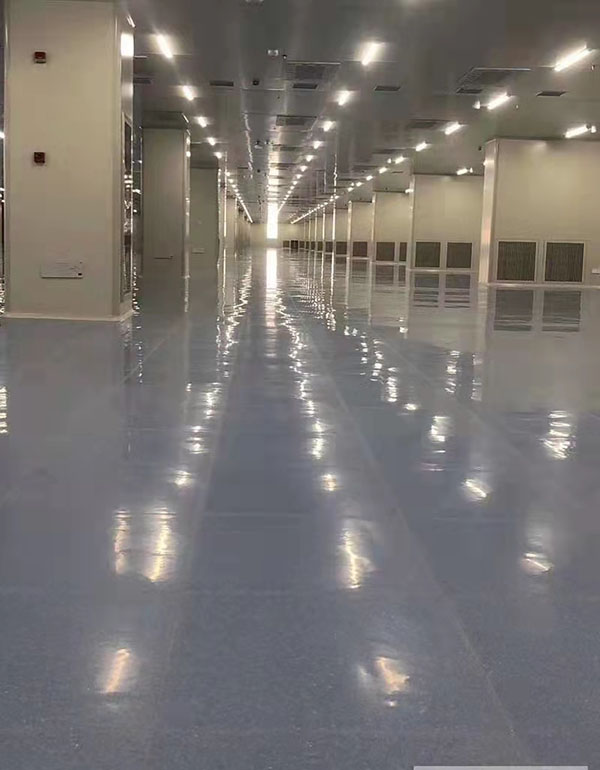

Permanent anti-static PVC flooring004
