Anti-static steel raised access floor panel with ceramic tile (HDGc)

Short Description:

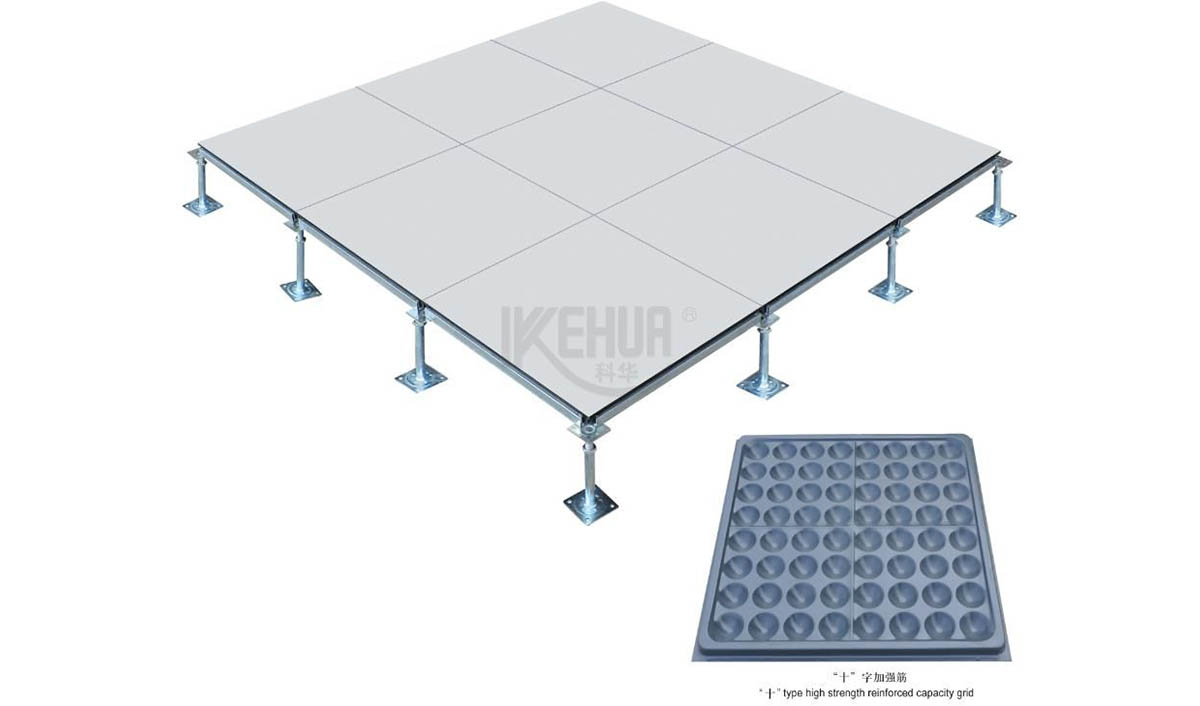

Ceramic anti-static raised floor Product specification: 600*600*40 600*600*45 Product introduction: all steel anti-static raised floor is made of high quality alloy cold rolled steel plate, after stretching, spot welding forming. After phosphating, the outer surface is treated with electrostatic spraying, the inner cavity is filled with standard cement, the upper surface is pasted with 10mm thick ceramic (bare board without veneer), and the conducting electrostatic edge strip is inlaid around.


Product Detail

Product Tags

Product description

Product name: Ceramic anti-static raised floor Product specification: 600*600*40 600*600*45 Product introduction: all steel anti-static raised floor is made of high quality alloy cold rolled steel plate, after stretching, spot welding forming.

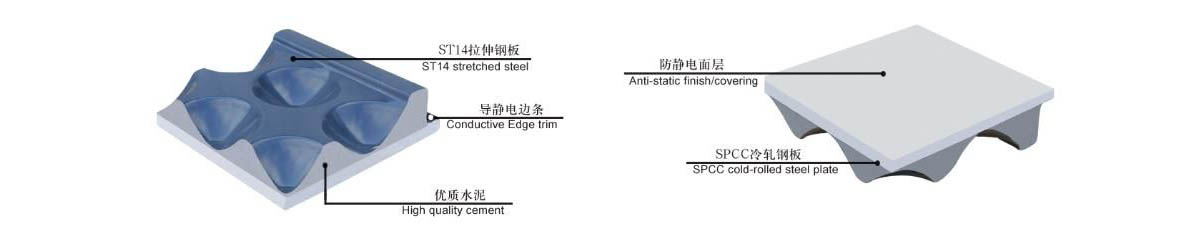

After phosphating, the outer surface is treated with electrostatic spraying, the inner cavity is filled with standard cement, the upper surface is pasted with 10mm thick ceramic (bare board without veneer), and the conducting electrostatic edge strip is inlaid around. The all-steel anti-static floor is cement poured into the metal shell formed by stamping and welding to ensure the strength and impact resistance of the floor. In addition, the scientific mechanical structure of the angang floor makes its bearing capacity 30% higher than other floors of the same specification.

Features

1. All steel structure, high strength, strong bearing capacity, good impact resistance.
2. The surface of electrostatic spray, soft light, wear-resistant, waterproof, fireproof, dustproof, corrosion prevention.
3. The pasted ceramic veneer has excellent wear resistance, anti-pollution, easy cleaning and strong decoration.
4. Flexible assembly, convenient maintenance, long service life.
5. The floor can be cut at will, easy to install accessories.
6. 4 sides fixed, easy to install.
7. The lower space can be used for air conditioning and ventilation.
8. For overweight equipment, as long as the support is added under the floor, the bearing problem can be solved.
9. Convenient disassembly and assembly, as long as the replacement of decorative veneer, can be reused.
10. When installing the socket, the hole must be opened according to the specifications of the socket.

Application

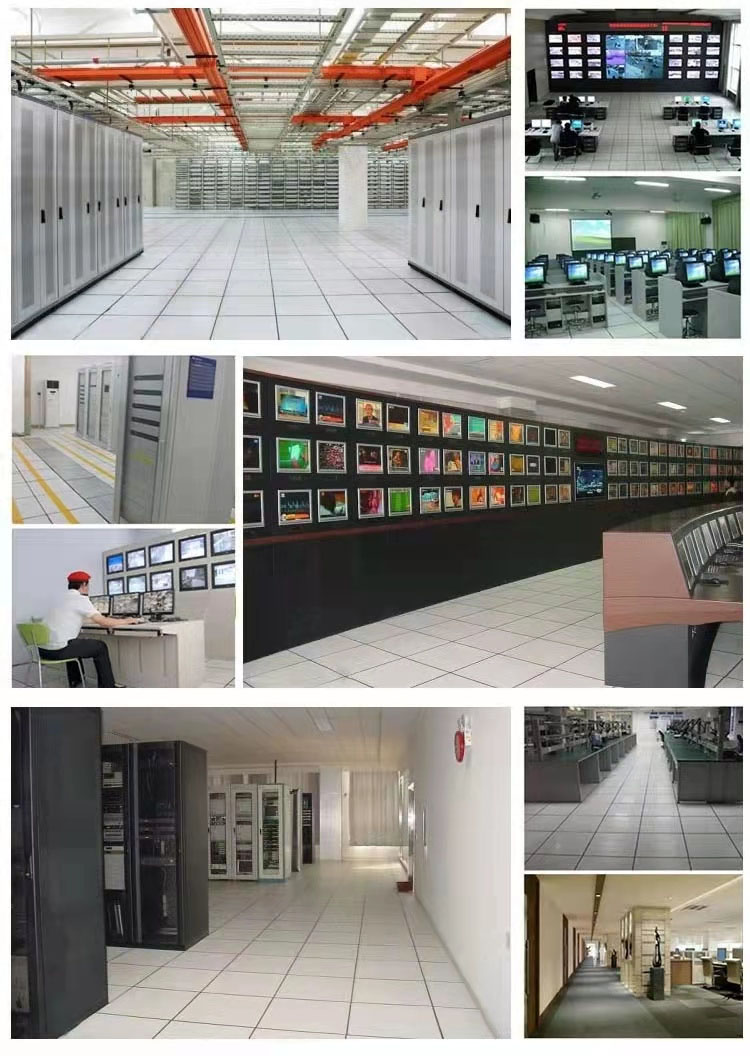

The static steel floor is suitable for places with high load-bearing and ESD requirements, such as the main equipment room with large servers and cabinets. Large, medium and small computer room, program-controlled equipment room, satellite and reflecting the command center, monitoring center, the controller, electrical-controlled classroom, electronic reading room, all kinds of electrical control rooms, post and telecommunications hub and with computer control of the military, economic, national security, aviation, aerospace and transportation scheduling command and information management center, dust-proof, anti-static, and places need to be raised.

Performance select chart

Type Specification
Concentrated Load(N) Impact Load(N) Ultimate Load(N) Untimate Load(N/m2) Dynamic Load(N) Fire Protection System resistance
International National LB N KG 10 10000 1x106Ω~1x109Ω
FS700 HDGo(Q) 600x600x40 700 2950 318 550 8850 12500 2950 2255 A
FS800 HDGo(P) 600x600x40 800 3560 363 670 10680 16000 3560 2950 A
FS1000 HDGo(B) 600x600x45 1000 4450 453 670 13350  23000 4450 3560 A
FS1250 HDGo(Z) 600x600x45 1250 5560 567 670 16680 33000 5560 4450 A

FAQ

1. When will make the delivery?
Delivery time
- sample order :1-3 days after receip of the full payment.
- stock order : 15 days after receipt of the full payment.
- OEM order: 30 days after receipt of the deposit.

2. After-sales service
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacture,you can rest assured of the quality and after-sales service.

3. Can you provide samples?
We can provide free samples, but you need to pay for the freight in advance.

4. Transportation
Transported by sea freight, by air, by ladtransport etc can be accepted.
