Calcium sulphate raised access floor with Ceramic tile (HDWc)

Short Description:

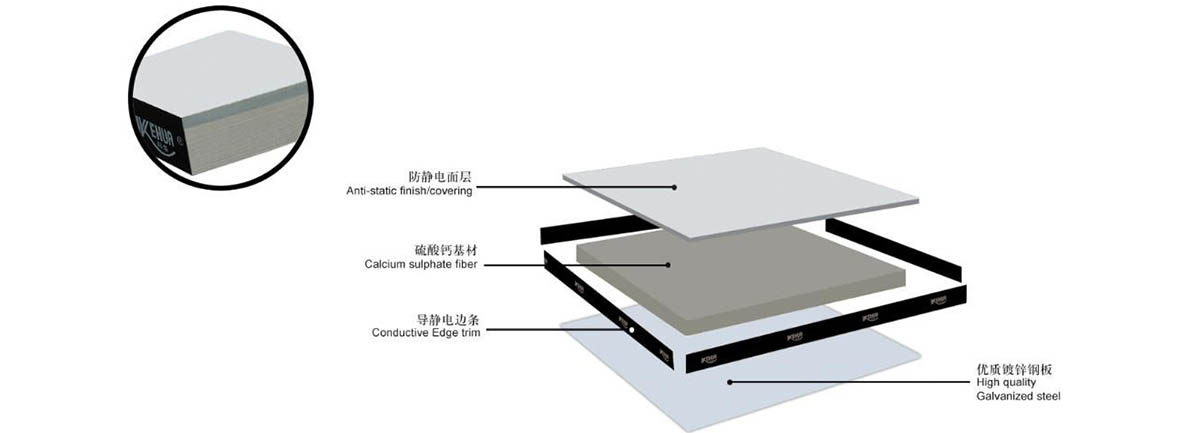

It is composed of surface layer, edge sealing, upper steel plate, filler, lower steel plate, beam and bracket. The edge seal is a conductive black tape (no edge seal on the floor). Surface layer: generally PVC, HPL or ceramic.  Anti-static floor steel plate: high quality cold rolled steel plate, one stamping molding, high dimensional accuracy. Bottom steel plate: deep tensile cold rolled steel plate, bottom special pit structure, increase floor strength, multi-head spot welding, surface electrostatic painting treatment, corrosion and rust prevention.


Product Detail

Product Tags

Product description

It is composed of surface layer, edge sealing, upper steel plate, filler, lower steel plate, beam and bracket. The edge seal is a conductive black tape (no edge seal on the floor). Surface layer: generally PVC, HPL or ceramic. Anti-static floor steel plate: high quality cold rolled steel plate, one stamping molding, high dimensional accuracy. Bottom steel plate: deep tensile cold rolled steel plate, bottom special pit structure, increase floor strength, multi-head spot welding, surface electrostatic painting treatment, corrosion and rust prevention. Kehua calcium sulfate anti-static floor is anti-static floor filled with calcium sulfate base material.

Features

Calcium sulfate anti-static floor using calcium sulfate as the base material, the floor is, the opposite side of the galvanized sheet bonding, surrounded by PVC edge, the floor is not easy to be damp, not easy to deformation, longer burning time, long service life, the installed floor below the formation of a path, convenient floor below the line, line maintenance. Floor does not need to remove oil phosphating spray, flatness is good, the edge is not anti-warping, environmental protection, strength, sealing and stability.

Application

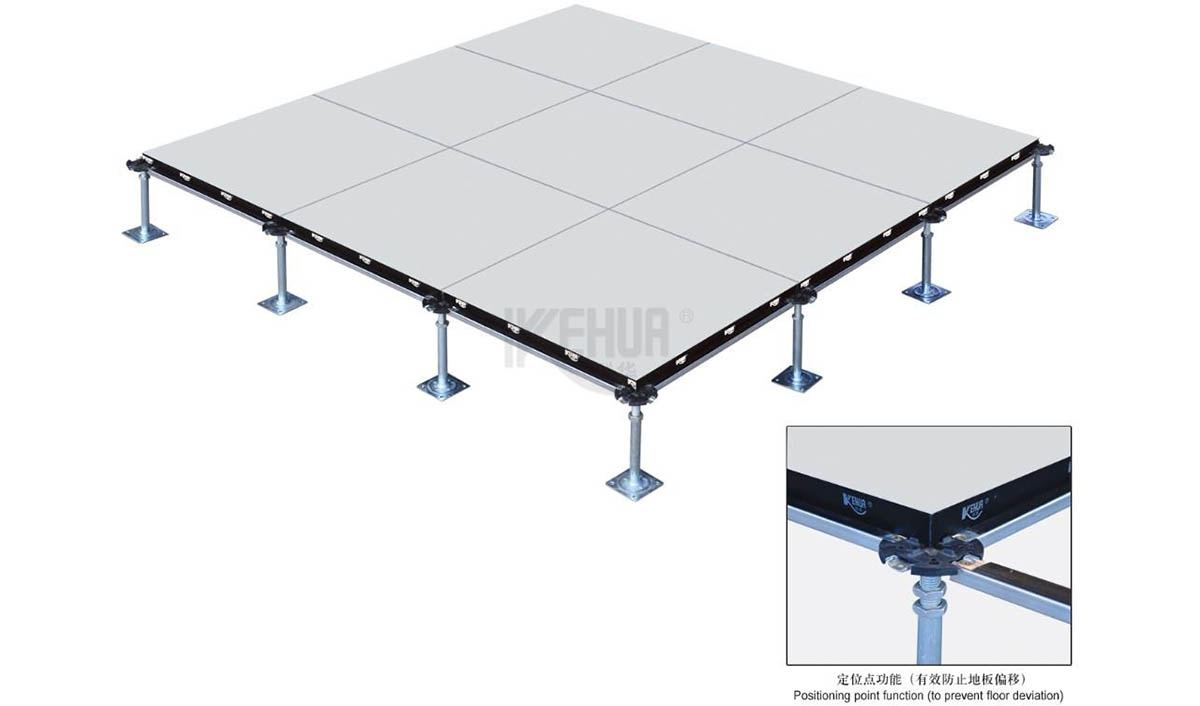

The raised floor is mainly used in places where power is frequently used or where many cables are concentrated. The style of the raised floor is designed by special science, in the form of shelves, the surface of the floor is shaped above, the floor is supported by the support below, he is a piece by piece method. The most used are computer rooms, office buildings, intelligent office places, banks, data centers, hospitals, monitoring rooms, railways, subways, airport control rooms and so on.

Performance select chart

Type Specification
Concentrated Load(N) Impact Load(N) Ultimate Load(N) Untimate Load(N/m2) Dynamic Load(N) Fire Protection System resistance
International National LB N KG 10 10000
FS1000 HDWc(B) 600x600x35 1000 4450 453 670 13350  23000 4450 3560 A 1x106Ω~1x109Ω
FS1250 HDWc(Z) 600x600x40 1250 5563 568 670 16680 33000 5560 4450 A
FS1500 HDWc(CZ) 600x600x40 1500 6675 681 780 20025 43000 6675 5560 A
